Features

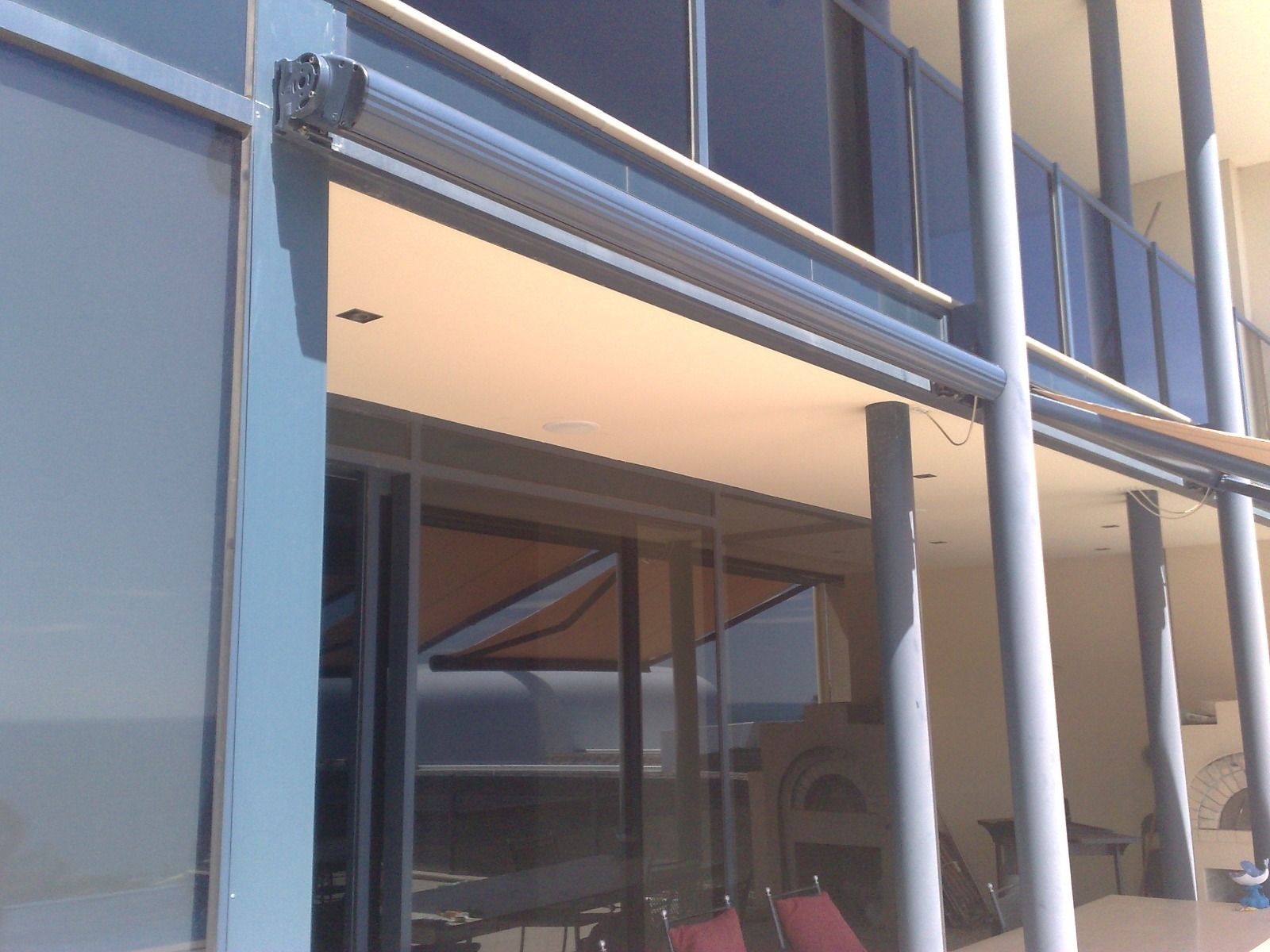

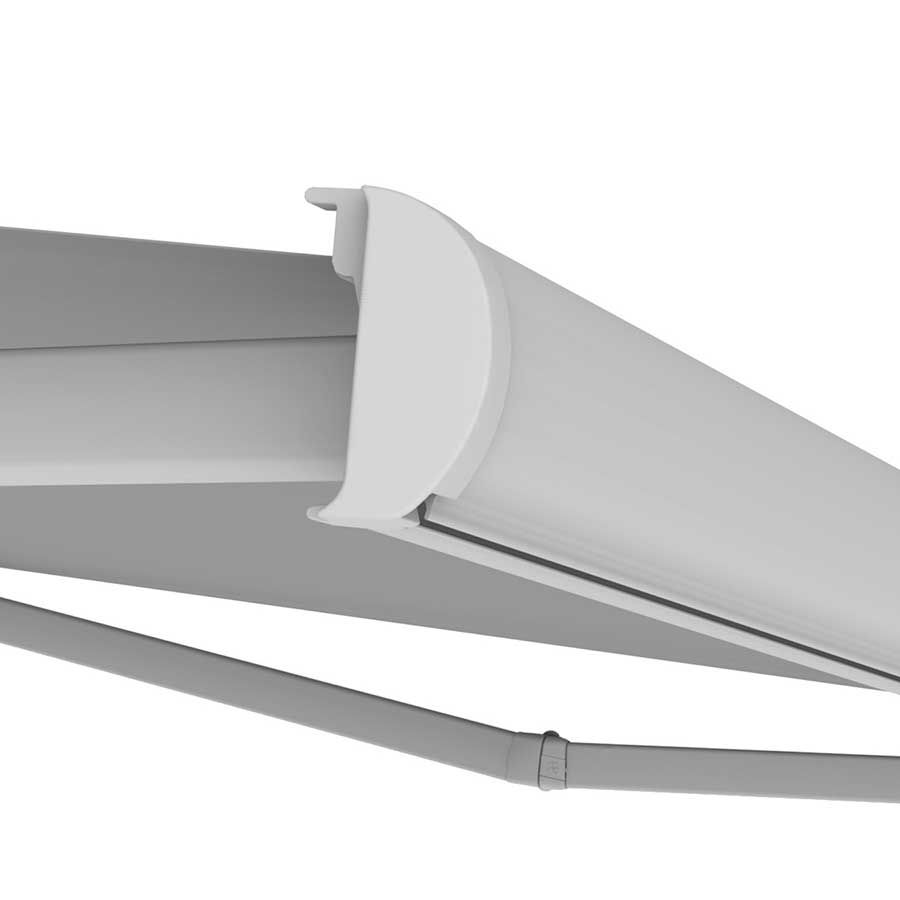

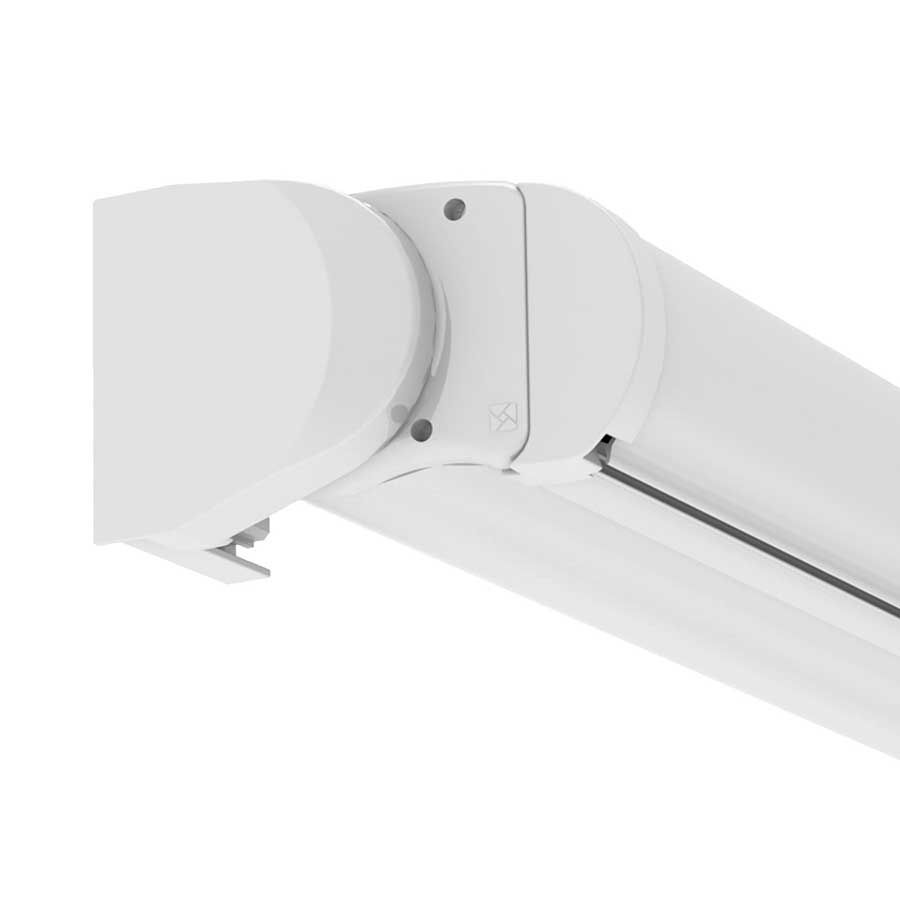

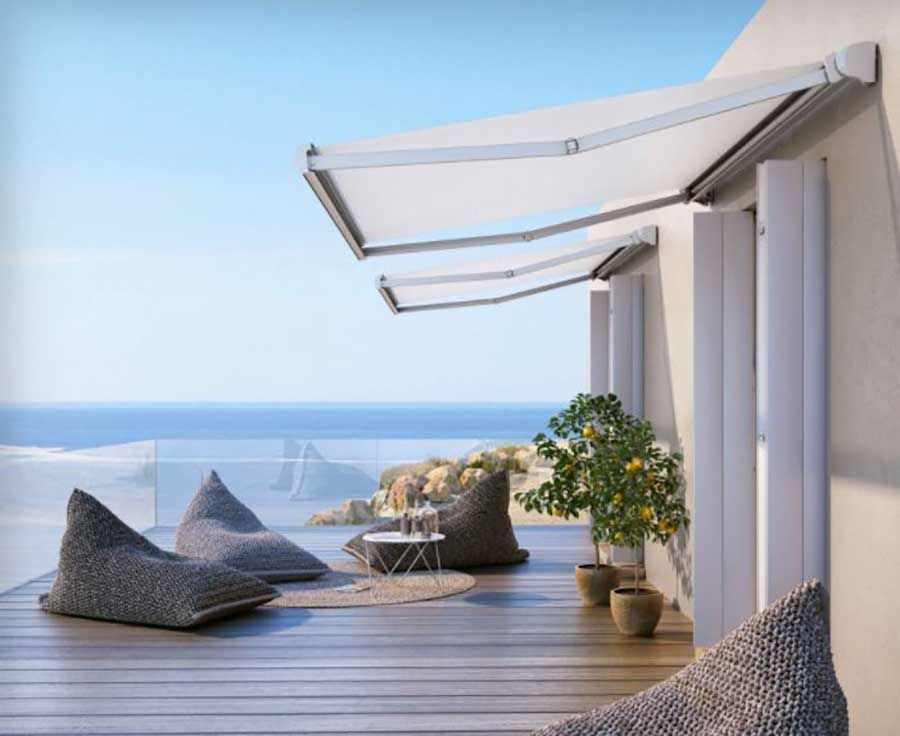

- Full Cassette awning offering the ultimate protection of the awning, components and fabric
- 70mm Galvanised Roller Tube with welded stream for added strength
- 11:1 Gear-box is standard – motorisation is optional

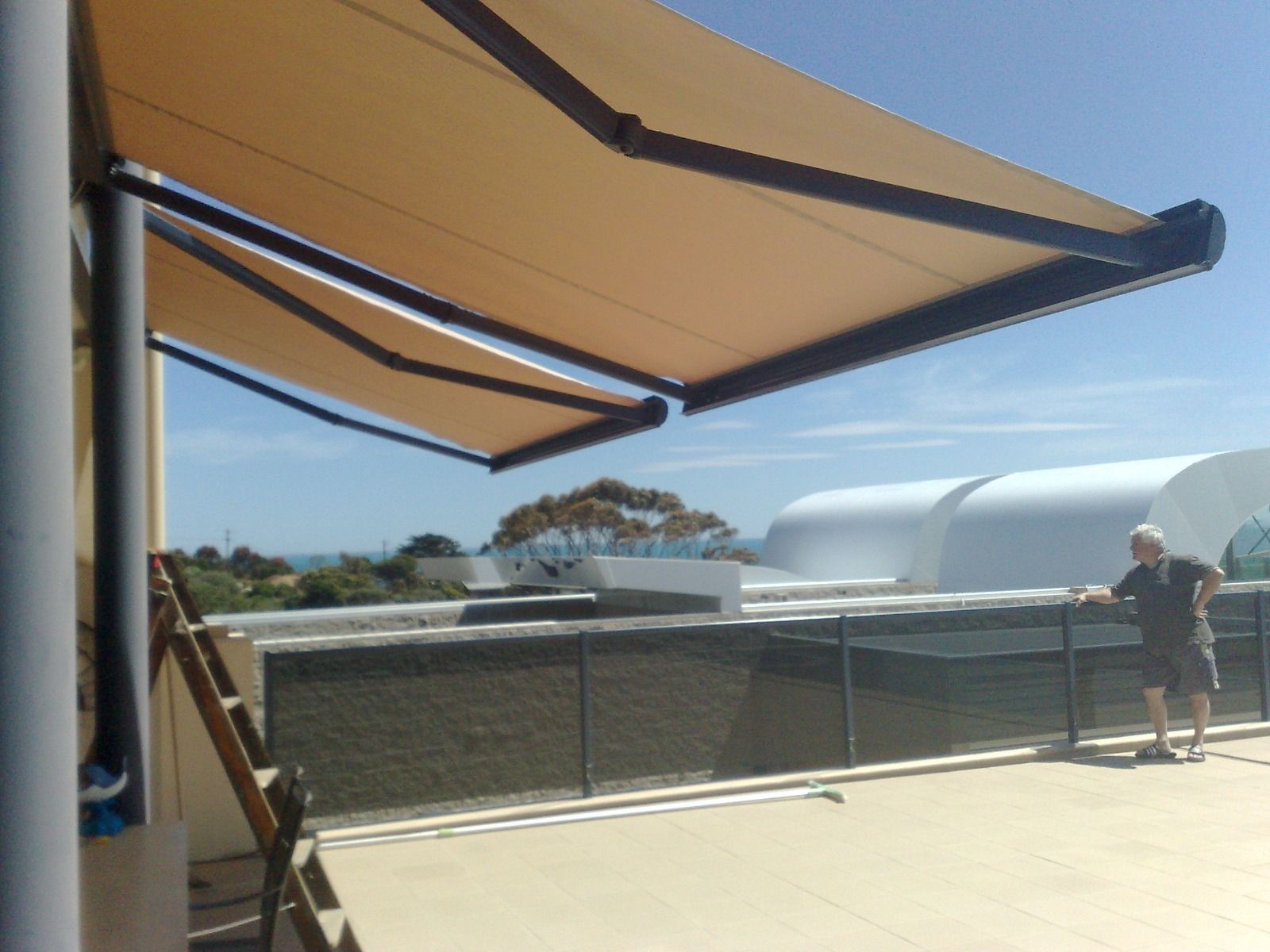

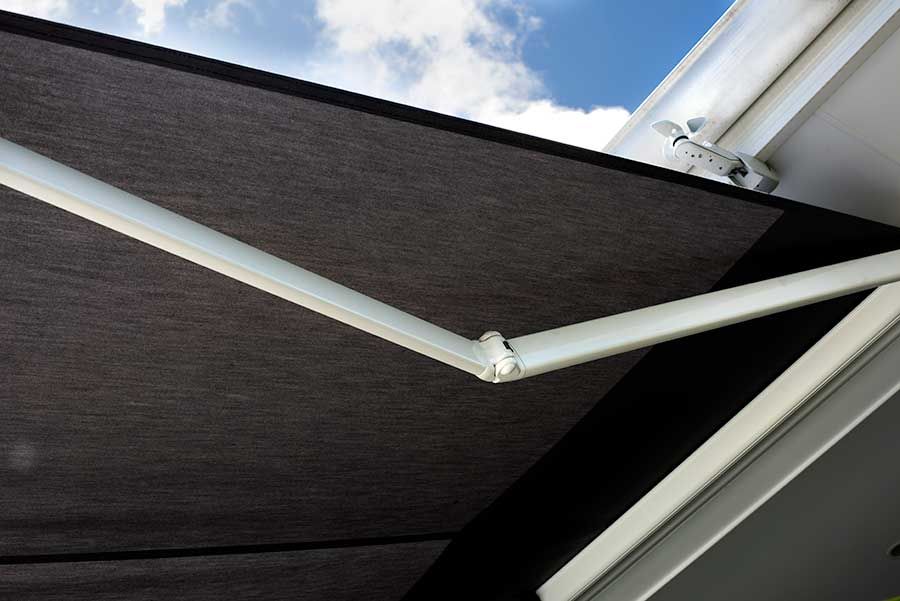

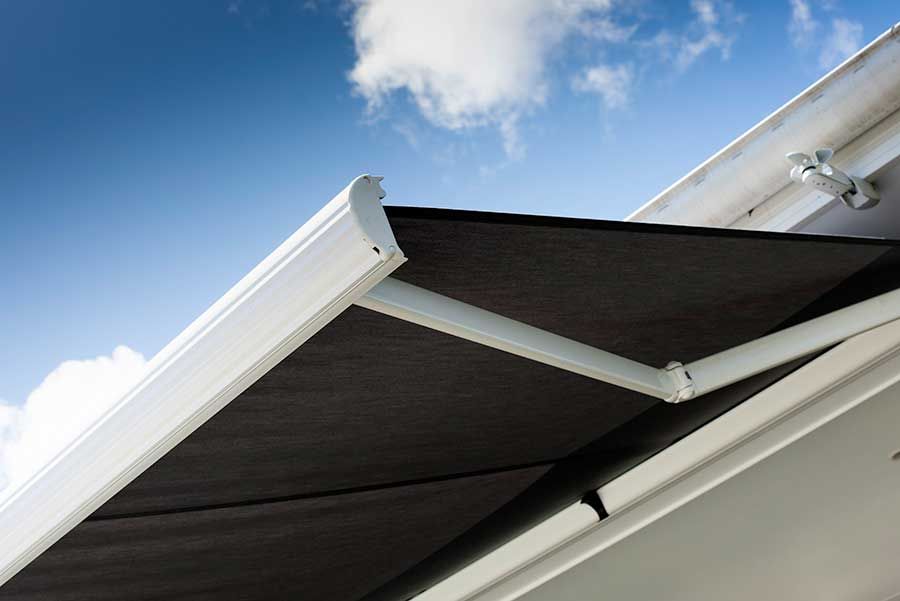

- Arm sizes from 1.6m to 3.1m
- Awning width from 1.91m to 5m

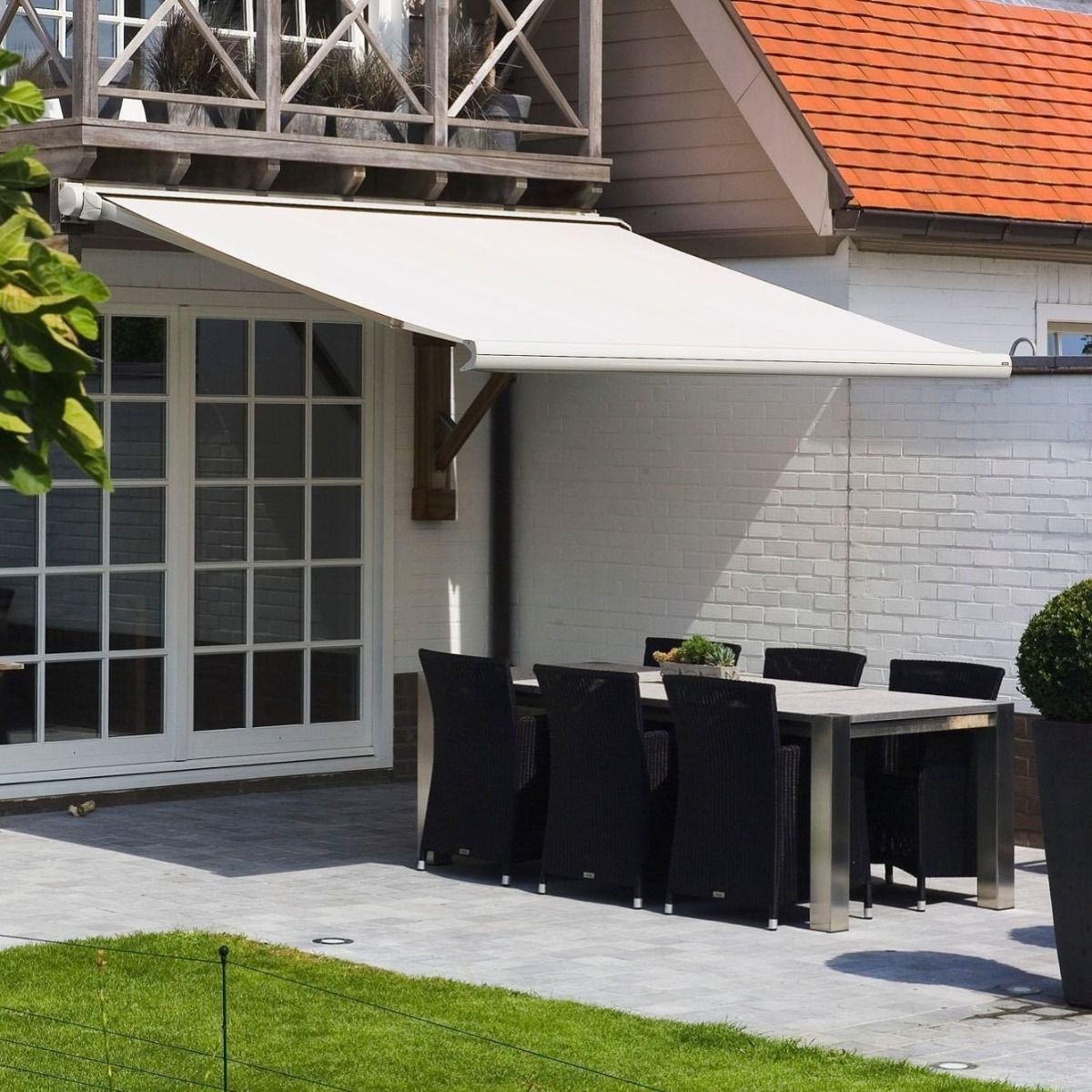

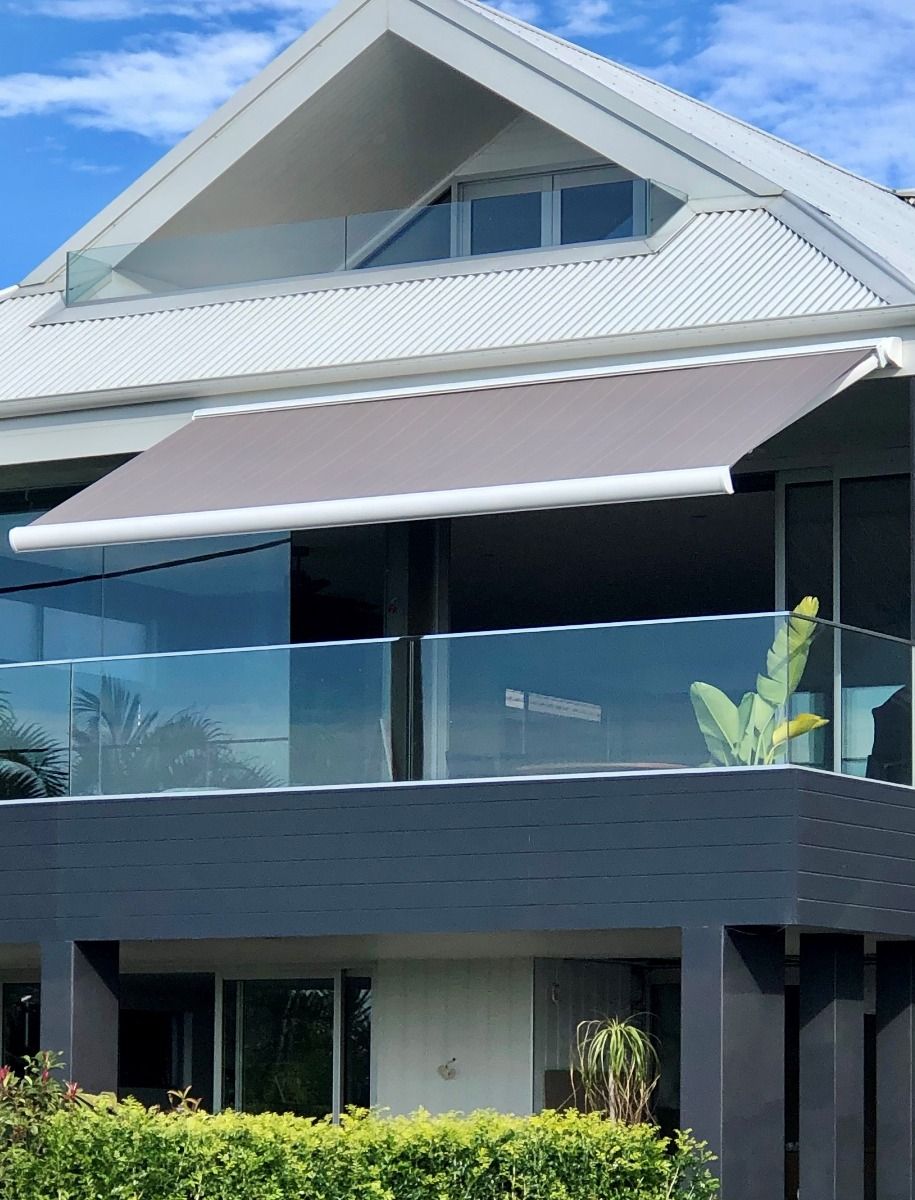

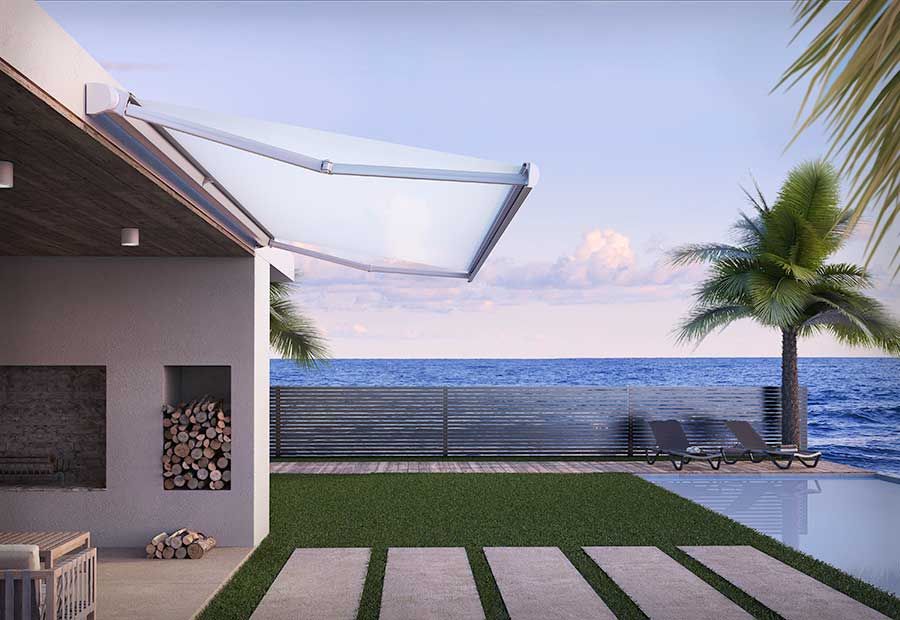

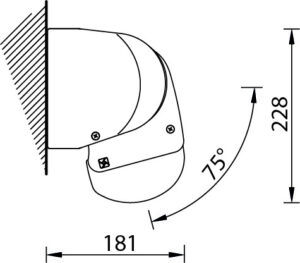

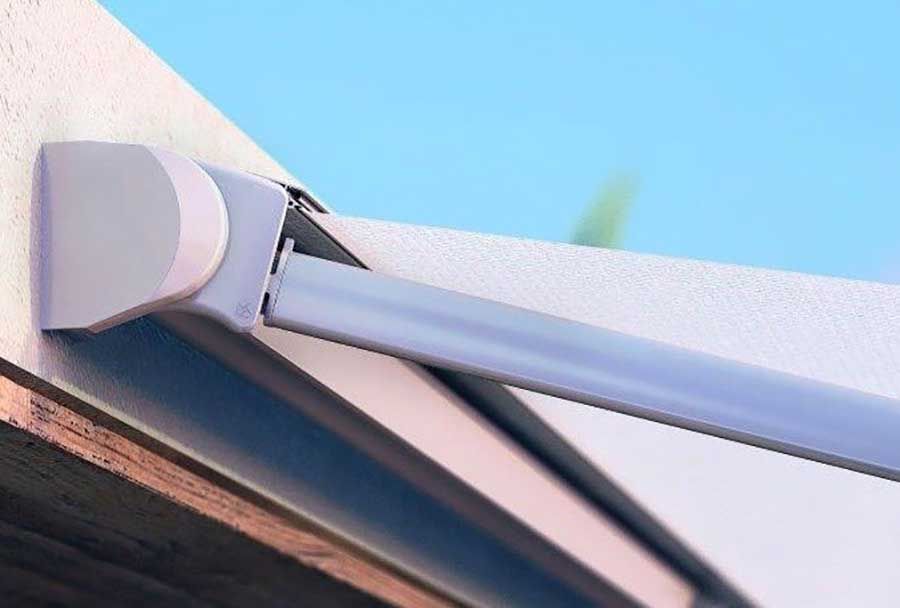

- Pitch adjustment from 5 to 75 degrees is possible with Wall mounting

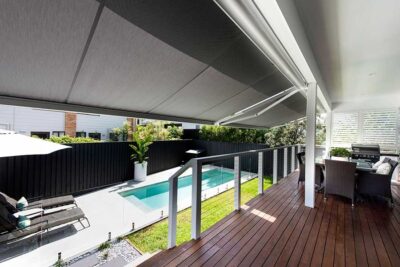

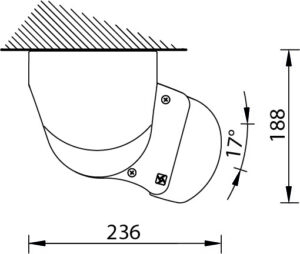

- Pitch adjustment from 15 to 90 degrees is possible with Ceiling mounting
- The Pitch of the awning is set at installation
- The Base Plus MUST be end fixed – no intermediate fixing is available
Specification
Width 1.91m ↔ 5m

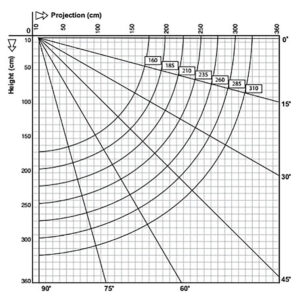

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m

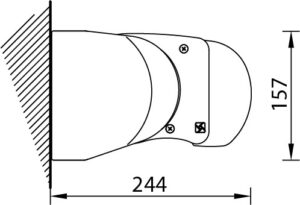

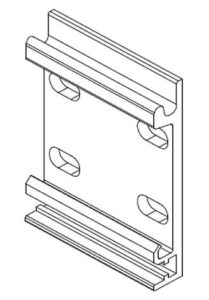

Base Plus Wall/Face Fix & Ceiling/Top Fix Bracket
Wind Rating
Awnings up to 2.6m projection – Wind Class 2 (European)/Beaufort Force 5 (Australian). Maximum wind speed 37kph.
Awnings with 3.1m projection – Wind Class 1 (European)/Beaufort Force 4 (Australian). Maximum wind speed 27kph.
Colour Option
Product Option
Somfy Motor
Orea 50 RTS 40/17
Motion/Wind Sensor
* Somfy Eolis 3D Motion Sensor in White, Black or Ivory
* Somfy Eolis Sensor RTS with LED feedback in White
Reverse Fascia 10 & 22 degree brackets
Rafter brackets 125mm or 200mm
Integrated LED Lighting Kit

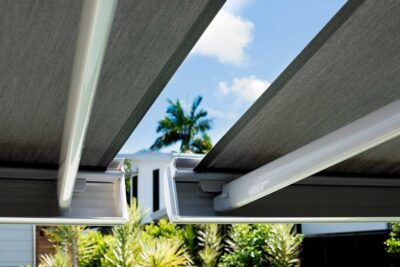

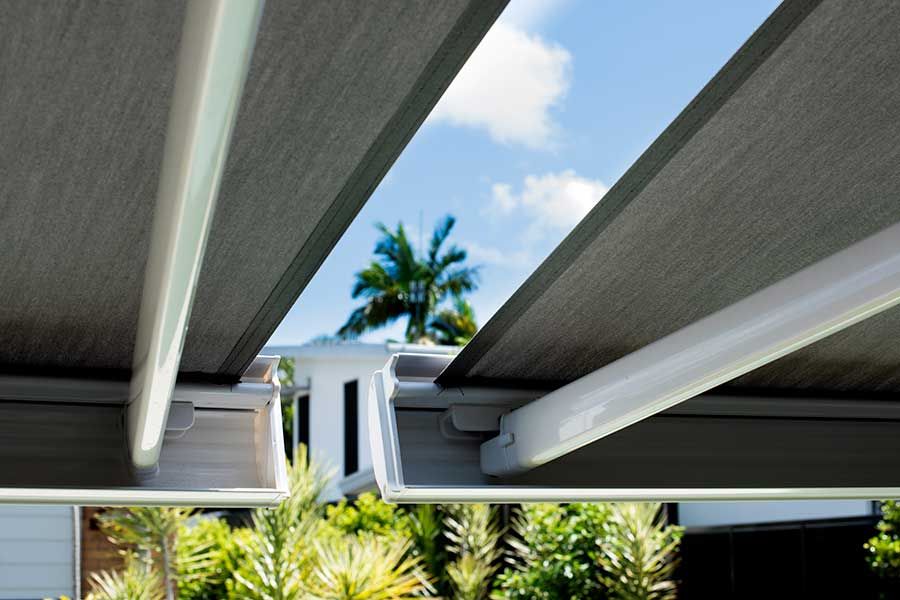

Integrated Arms with LED Lighting. Available in 2.6m, 3.1m and 3.6m projection.
Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring. Only available for 2 arm awnings.
