Features

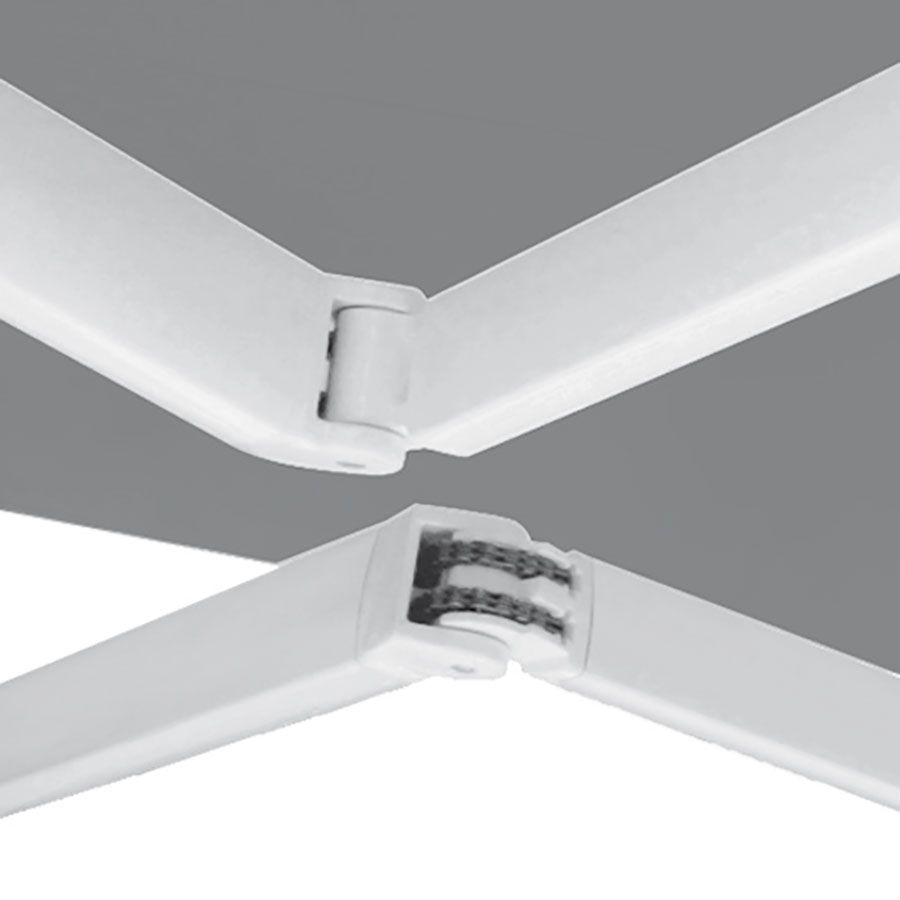

- Heavy Duty Folding Arms with Double Stainless Steel chain
- Twin 60mm x 40mm steel mounting bars
- Heavy Duty Mounting Brackets & Fittings
- Heavy Duty Extruded Aluminium Front Bar
- This is a motorised awning – manual operation is not available
- 78mm Galvanised Roller Tube with welded stream for added strength
- Projection sizes 4.1m, 4.6m & 5.1m

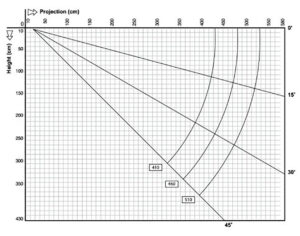

- Pitch Range to 45 degrees
- Centre support provided on awnings over 6m
Specification
Width 4.4m ↔ 12m
Projection 4.1m, 4.6m, 5.1m

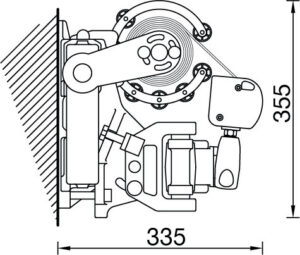

Victory Wall Fix Installation

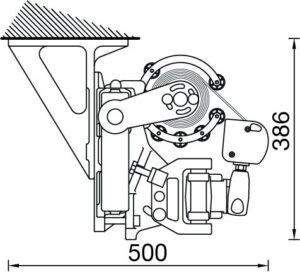

Victory Ceiling Fix Installation

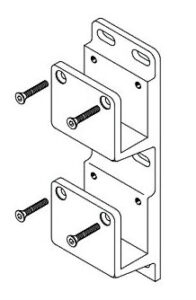

Victory Face/Wall Fix Bracket
Wind Rating
Awnings up to 4.1m projection – Wind Class 2 (European)/Beaufort Force 5 (Australian). Maximum wind speed 37kph.
Awnings with 4.6m & 5.1m projection – Wind Class 1 (European)/Beaufort Force 4 (Australian). Maximum wind speed 27kph.
Colour Options
Standard Colour is White. Other powder-coat colours are not available.
Product Option

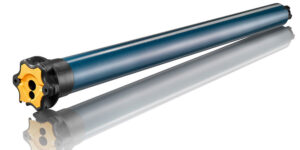

Somfy Motors
Altus 60 RTS 85/17 for 2 arm awning
Altus 60 RTS 120/12 for 3 or 4 arm awning
Top Fix Brackets
Victory Top/Ceiling Fix Bracket
Motion/Wind Sensor
* Somfy Eolis 3D Motion Sensor in White, Black or Ivory
* Somfy Eolis Sensor RTS with LED feedback in White
