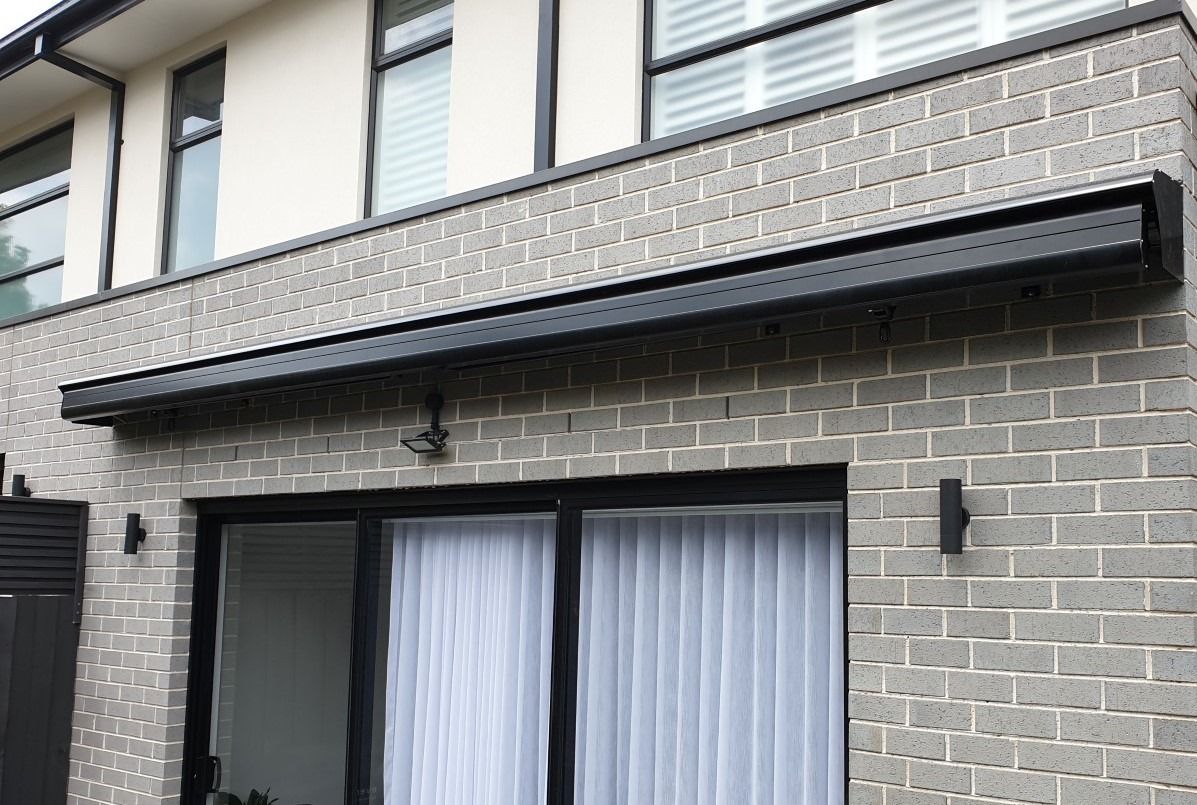

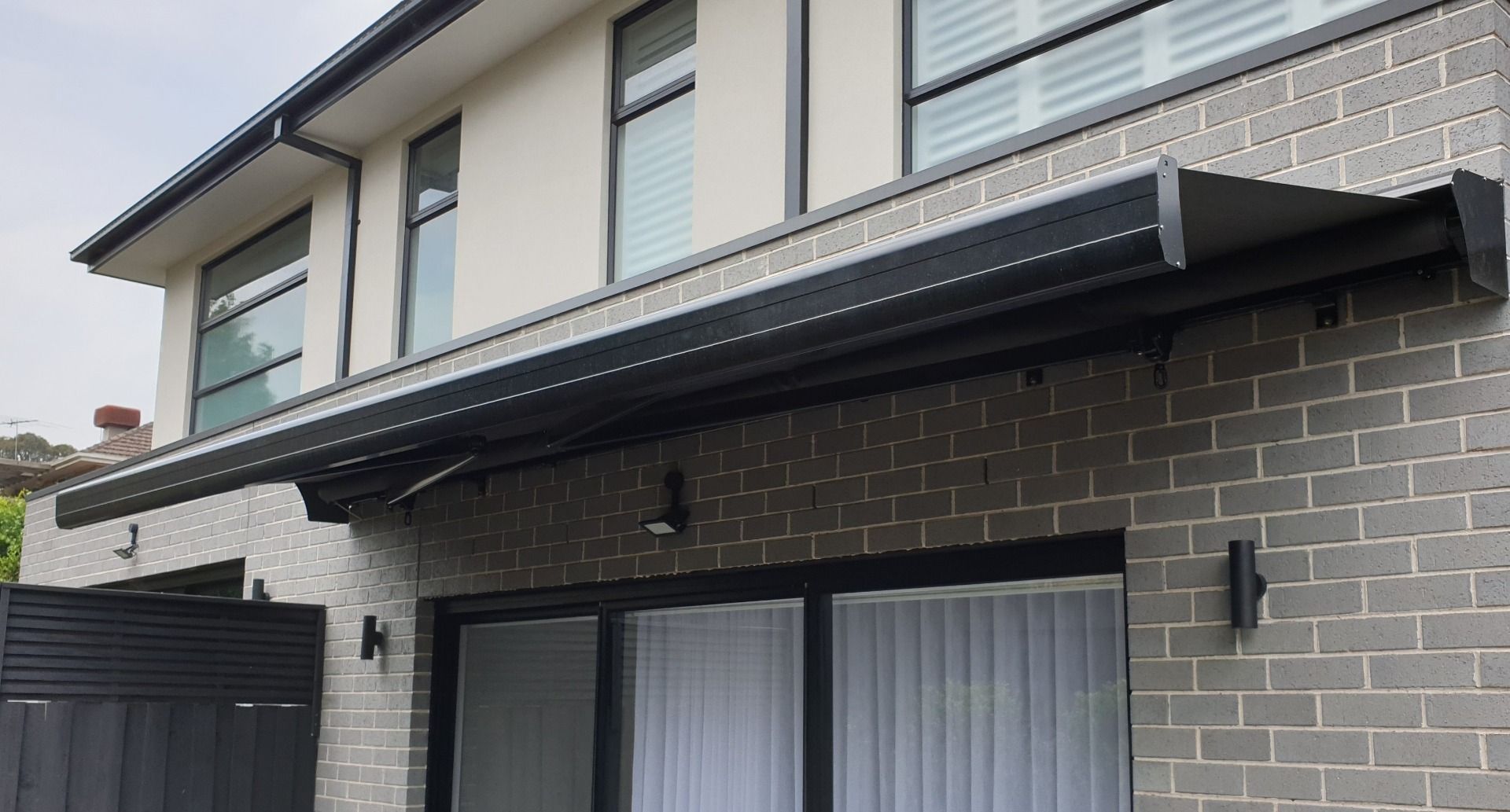

Semi-cassette awning with sylish wide front bar and extruded powder-coated aluminium hood to compliment one of our most popular awnings.
5 Year product hardware warranty.
Features
- 40mm x 40mm Square Bar
- 70mm Galvanised Roller Tube with welded stream for added strength for awnings up to 5m width, 78mm thereafter
- 7:1 Gear-box is standard – Awnings over 6m should be motorized
- Heavy duty arms with stainless steel chain
- Awning width from 1.946m to 7.36m
- Projection from 1.6m to 3.6m
- Customer adjustable pitch control on each arm is an optional extra – Adjustment range 5 degrees to 60 degrees

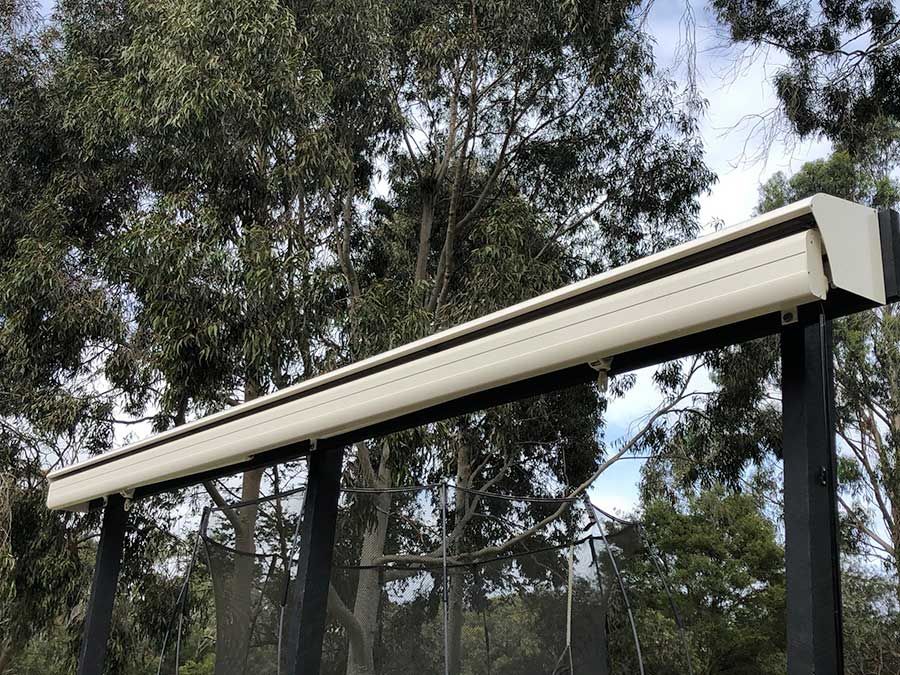

- Modern styled heavy extruded 2 piece aluminium hood and extended front bar
- Gives great sun protection when needed and can be retracted when require
Specification
Width 1.946m ↔ 7.036m

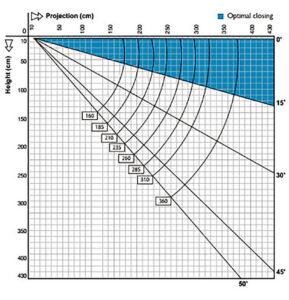

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m, 3.6m
Australia Semi-Cassette Wall Fix
Australia Wall Fix with Hood
Australia Ceiling Fix with Wide Front Bar
>Australia Face/Wall Fix US400 Bracket

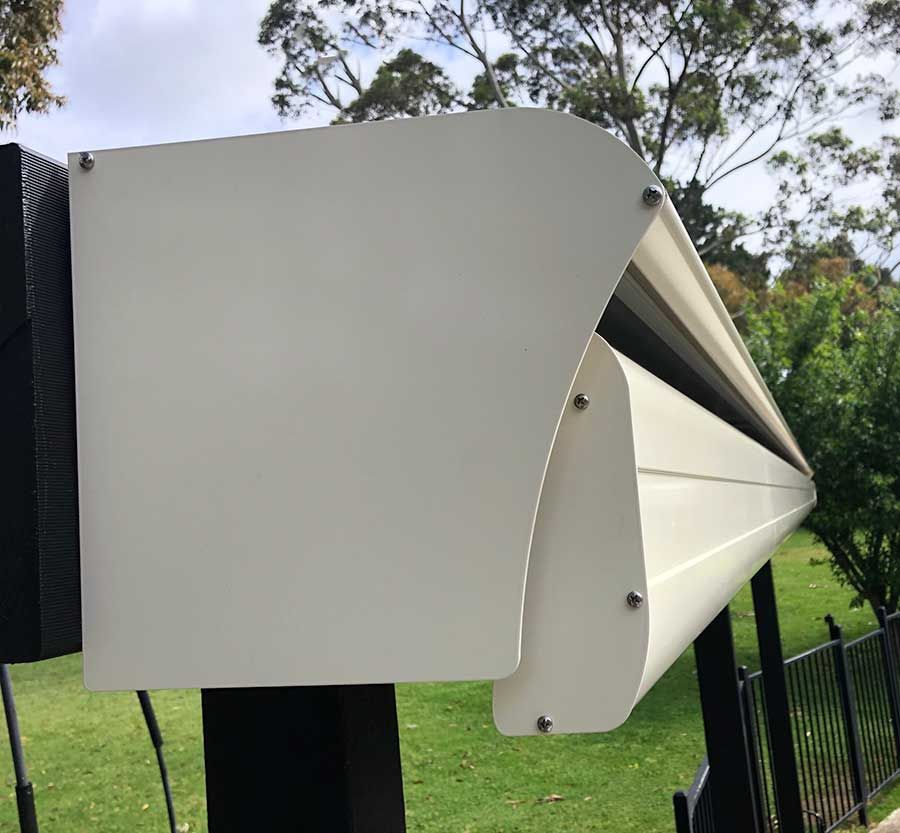

Australia Semi-Cassette Hood Bracket

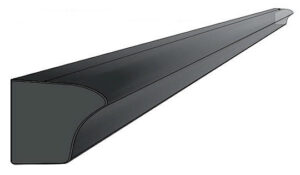

Australia Semi-Cassette Hood Profile

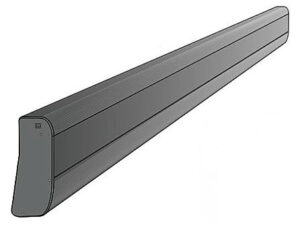

Australia Semi-Cassette Front Bar Profile
Wind Rating
Wind Class 2 (European)/Beaufort Force 5 (Australian)
Maximum wind speed 37kph
Colour Option
Colour options are White, Ivory, Silver Grey and Black Satin. Other standard Dulux Duralloy powder-coat colours are available at an additional cost.
Product Option

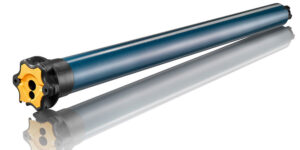

Somfy Motors
Altus 50 RTS 40/17 for 2 arm awning
Altus 50 RTS 50/12 for 3 arms up to 2.1m projection
Altus 60 RTS 55/17 for 3 arms over 2.1m projection

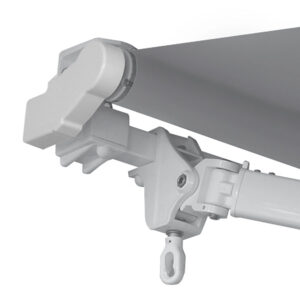

Customer Adjustable Pitch Control
Adjustment range between 5-60 degrees
Top Fix Brackets
Top/Ceiling Fix Square bar fixing bracket
Motion/Wind Sensor
* Somfy Eolis 3D Motion Sensor in White, Black or Ivory
* Somfy Eolis Sensor RTS with LED feedback in White

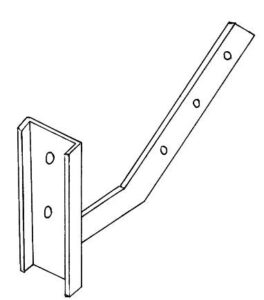

Fascia 10 & 22 degree brackets

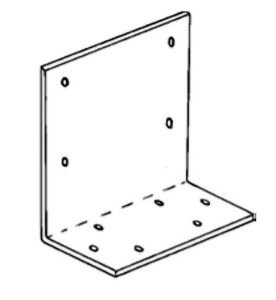

Rafter brackets 125mm or 200mm

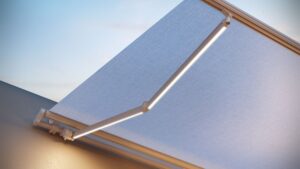

Integrated LED Lighting Kit
Integrated Arms with LED Lighting. Available in 2.6m, 3.1m and 3.6m projection.
Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring. Only available for 2 arm awnings.
