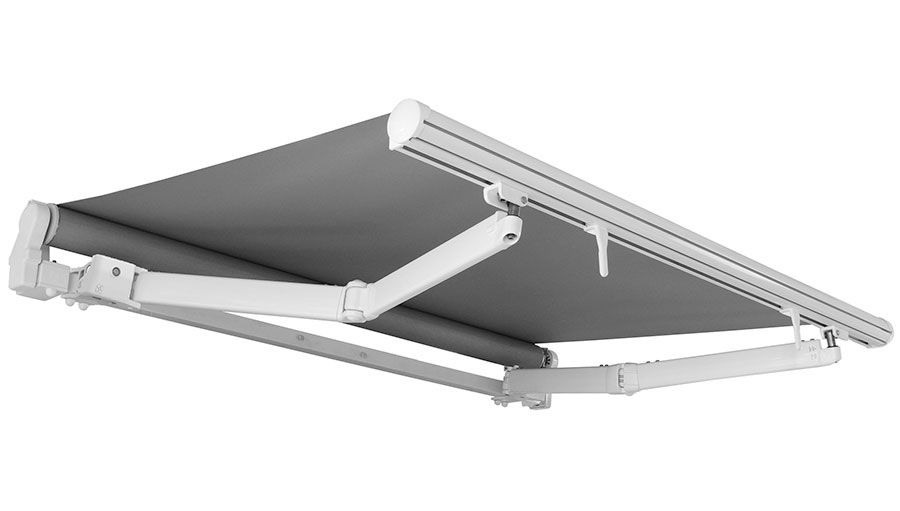

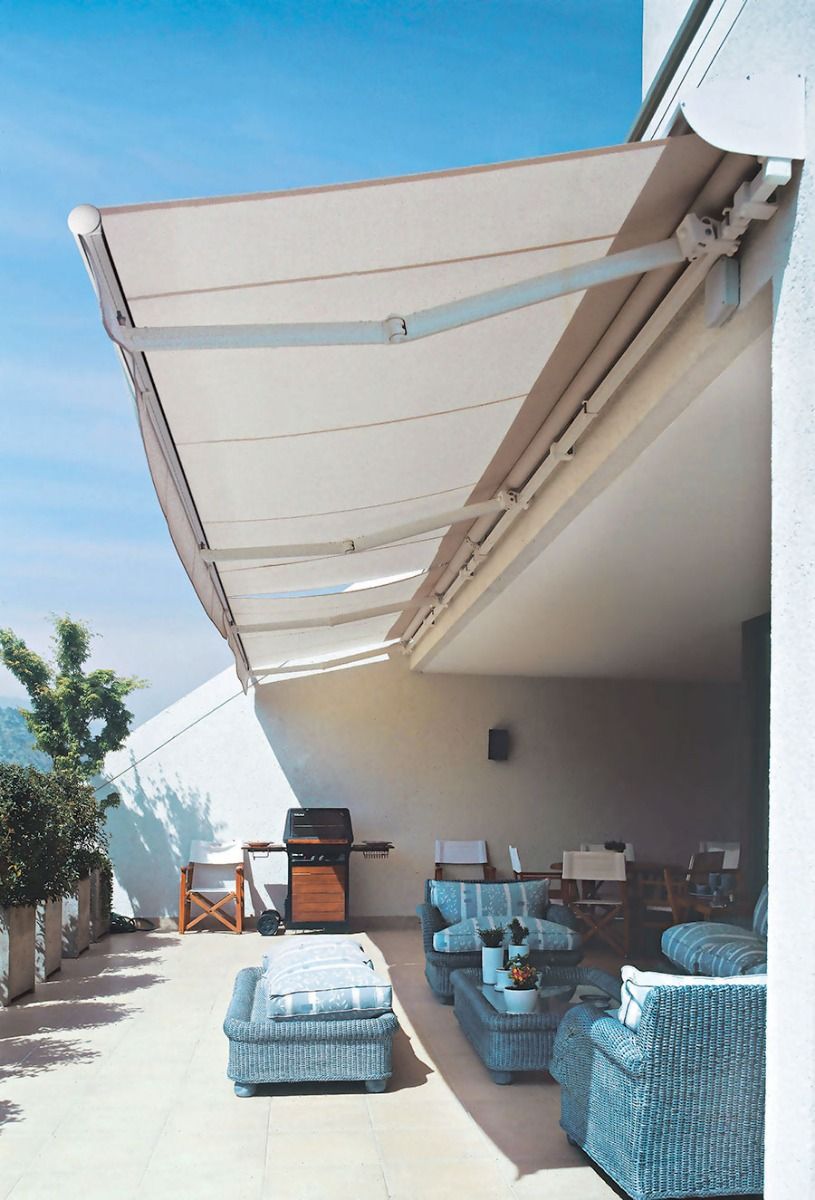

Global 2020 Semi-Cassette Folding Arm Awning

      Features

• 40mm x 40mm Powder-coated Galvanised Square Bar
• 78mm Galvanised Roller Tube with welded stream for added strength
• 11:1 Gear-box is standard – awnings over 6m should be motorised
• Compact Design which sits closer to the wall
• Projection from 1.6m – 4.1m
• Width from 2.050m – 7m

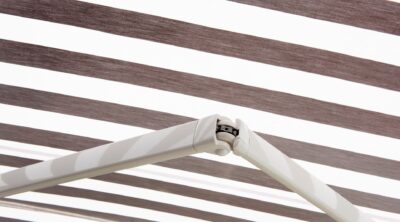

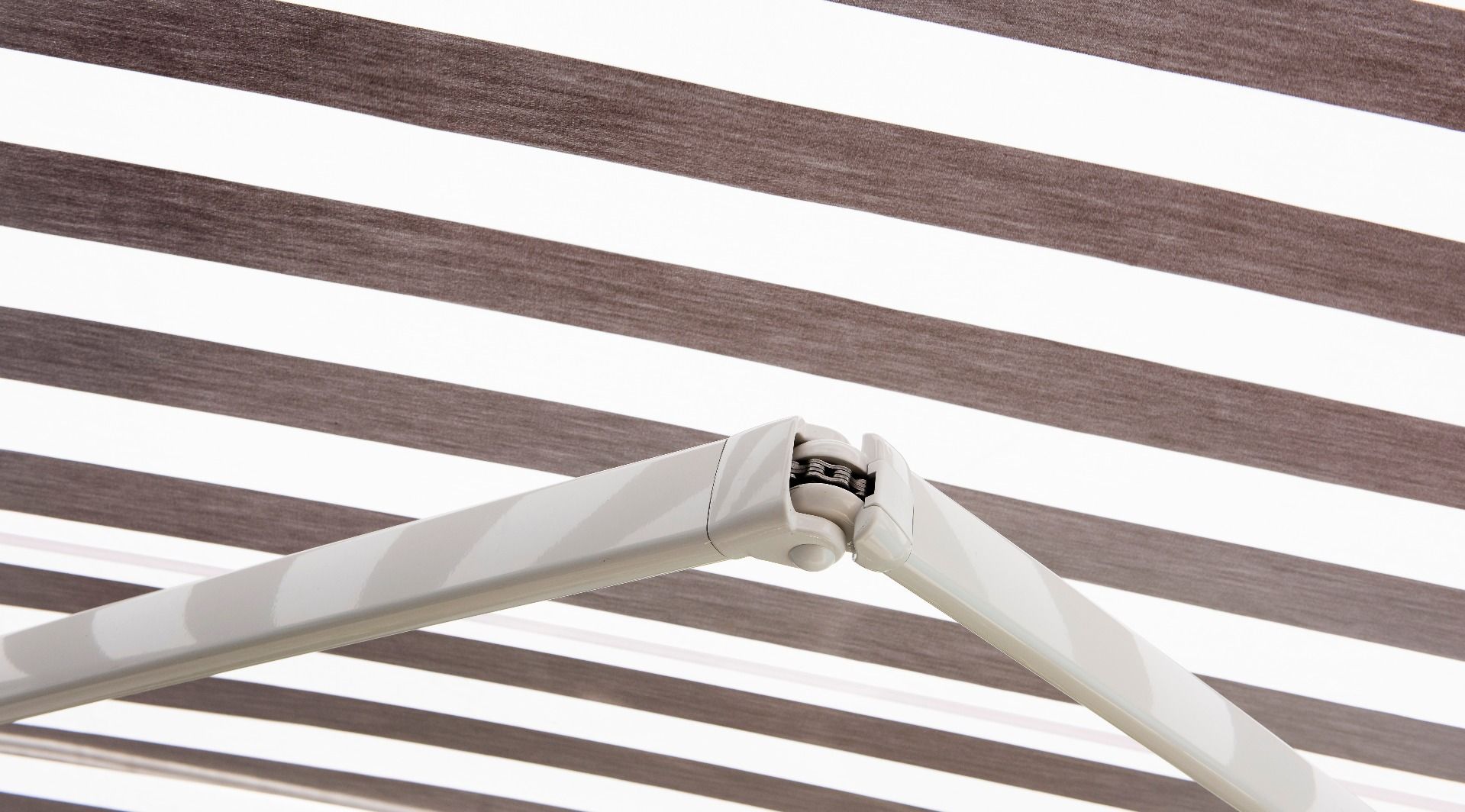

• Heavy Duty Arms with Stainless Steel chain

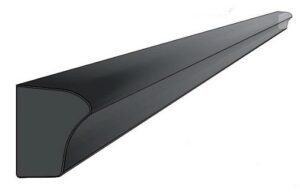

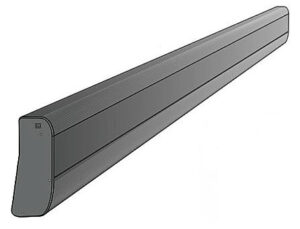

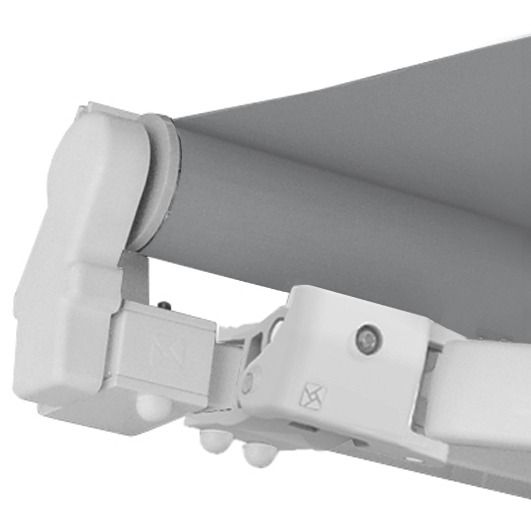

• Modern styled Heavy Duty Extruded Aluminium Hood and Extended Front Bar
• Centre support provided on awnings over 6m
• Pitch adjustment on installation can be set up to 15 degrees for optimal self-alignment when closed
• Awnings over 6m should be motorised

Specification

Width 2.05m ↔ 7.036m

Projection 1.6m, 1.85m, 2.1m, 2.35m, 2.6m, 2.85m, 3.1m, 3.6m, 4.1m

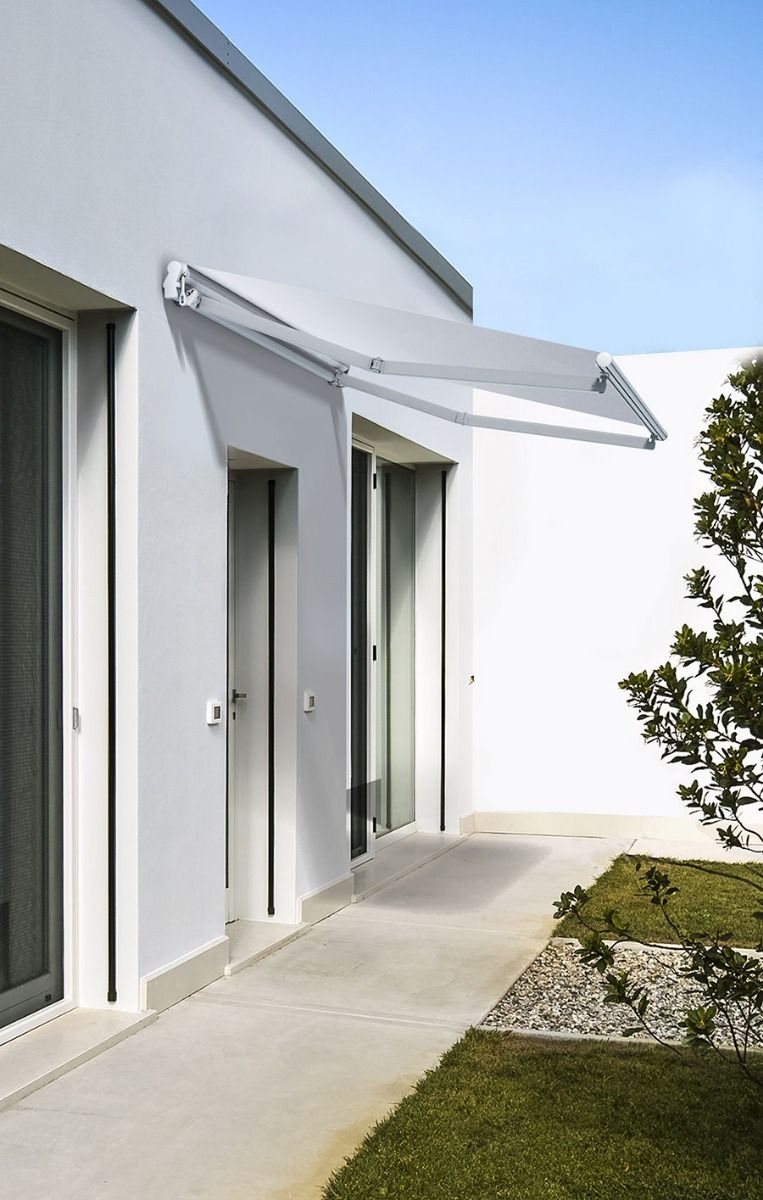

Global 2020 Semi-Cassette Wall Fix Installation

Wind Rating

Awnings up to 3.6m projection – Wind Class 2 (European)/Beaufort Force 5 (Australian). Maximum wind speed 37kph

Awnings with 4.1m projection – Wind Class 1 (European)/Beaufort Force 4 (Australian). Maximum wind speed 27kph

Colour Options

Colour options are White, Ivory, Silver Grey and Black Satin. Other standard Dulux Duralloy powder-coat colours are available at an additional cost.

Product Option

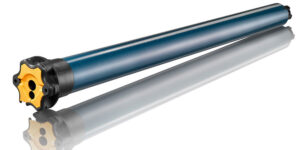

Somfy Motors

Altus 50 RTS 40/17 for 2 arm awning

Altus 50 RTS 50/12 for 3 arms up to 2.1m projection

Altus 60 RTS 55/17 for 3 arms over 2.1m projection

Motion/Wind Sensor

* Somfy Eolis 3D Motion Sensor in White, Black or Ivory

* Somfy Eolis Sensor RTS with LED feedback in White

Fascia 10 & 22 degree brackets

Rafter brackets 125mm or 200mm

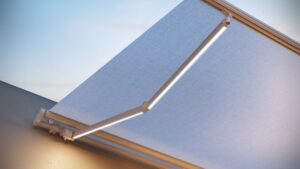

Integrated LED Lighting Kit

Integrated Arms with LED Lighting.  Available in 2.6m, 3.1m and 3.6m projection.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   Only available for 2 arm awnings.
