Vertiscreen

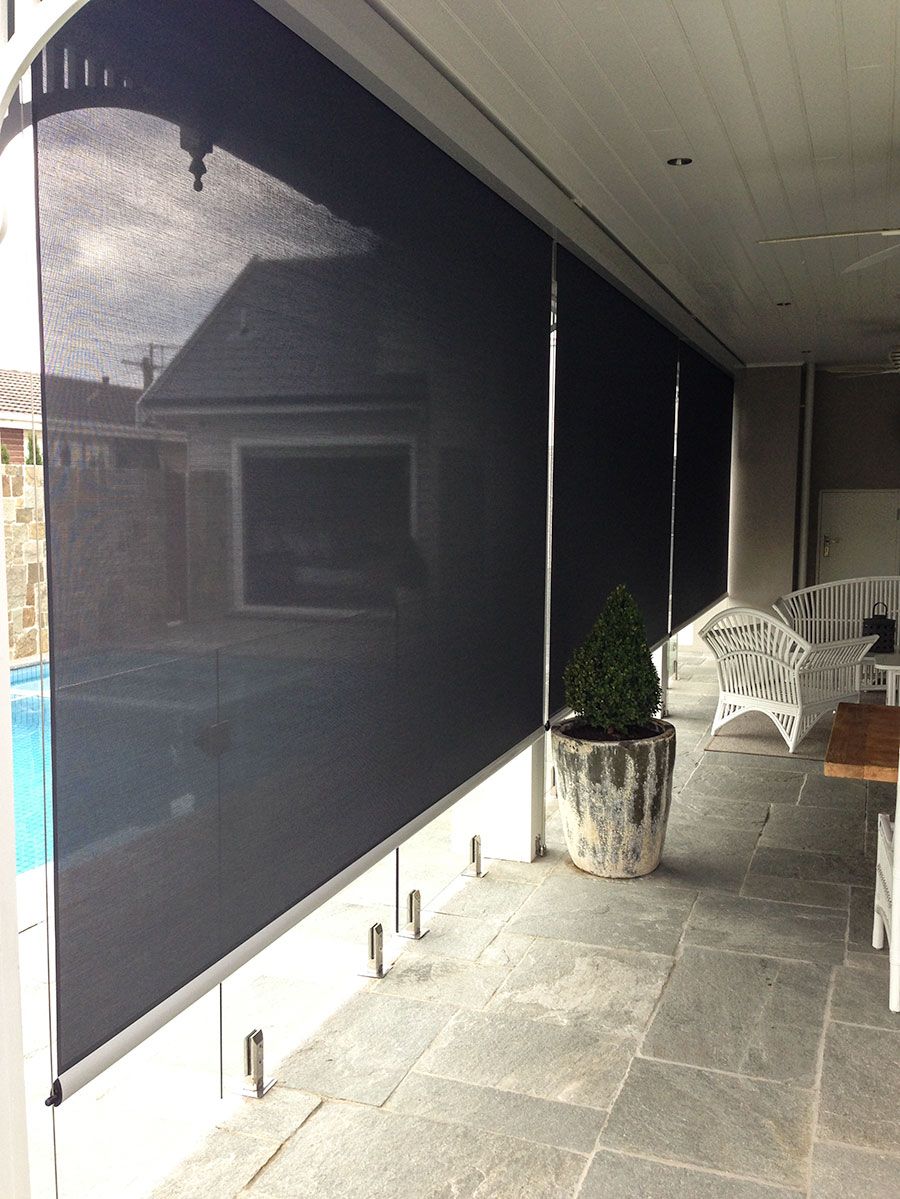

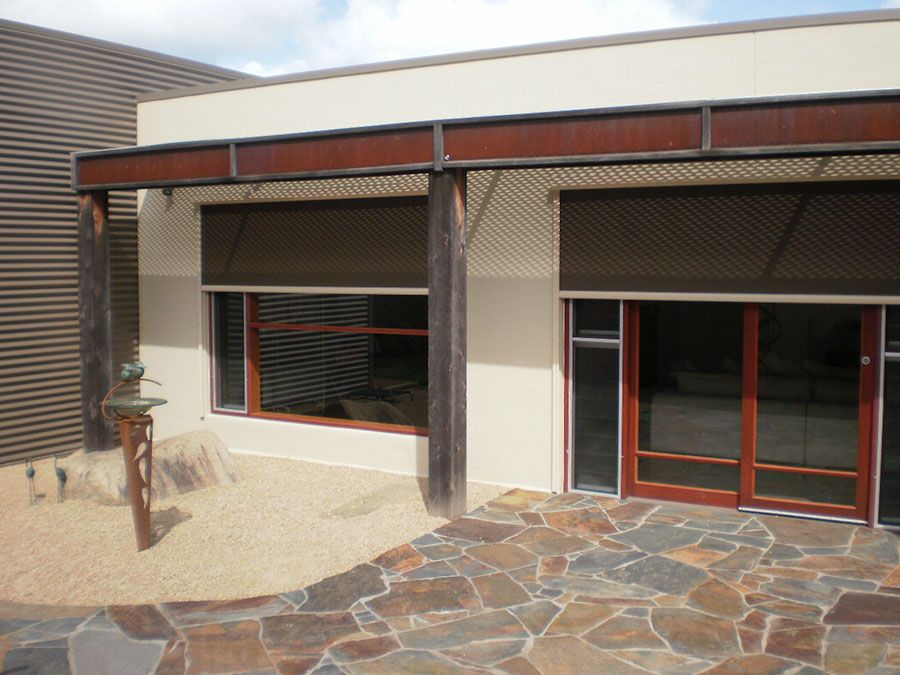

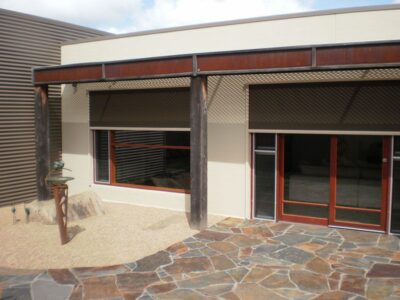

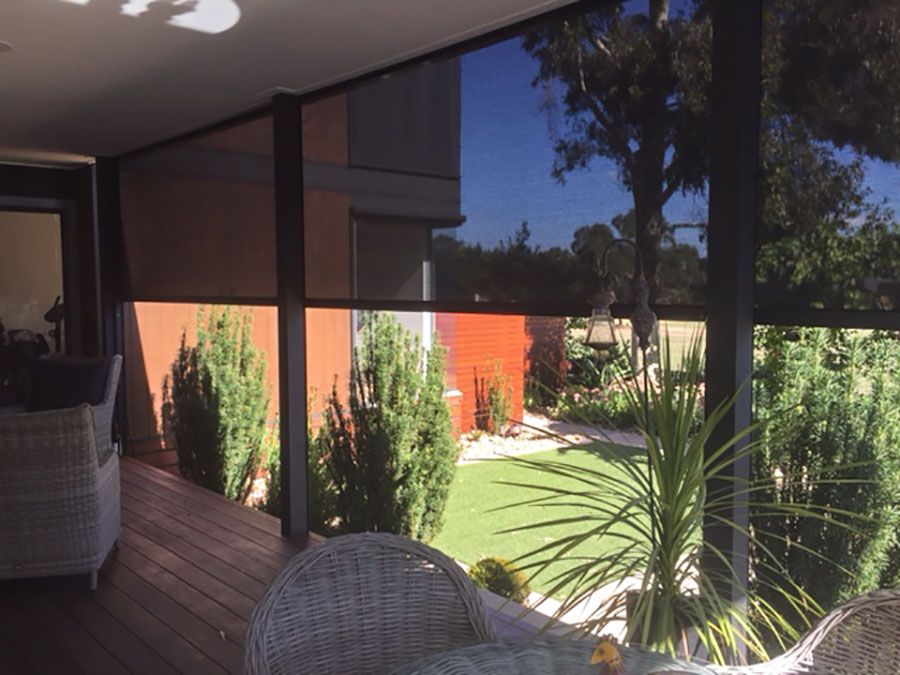

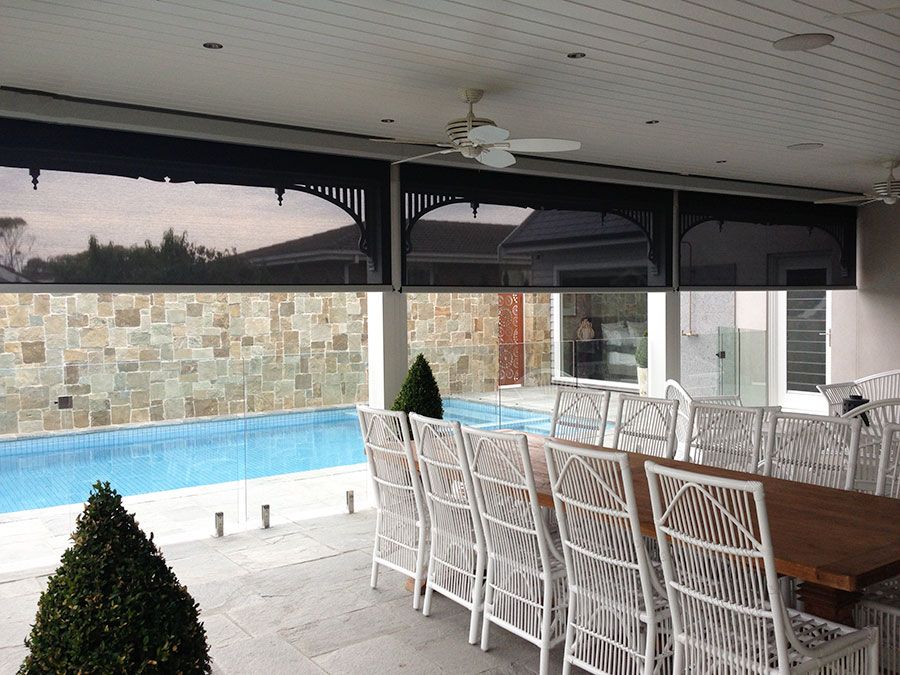

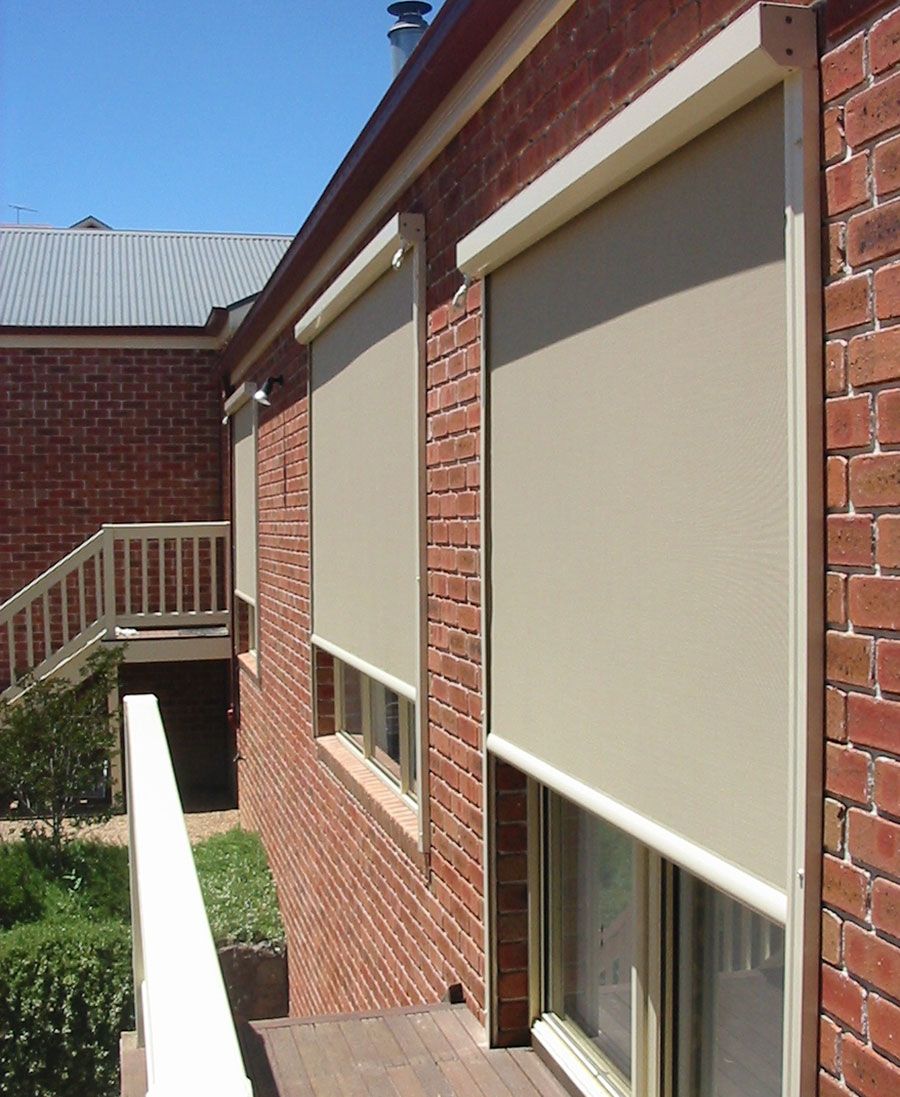

Vertiscreen is an exterior vertical blind sun protection system with a modern slim-line look.

5 Year product hardware warranty.

Features

• Stylish Aluminum Head-Box 125mm x 125mm

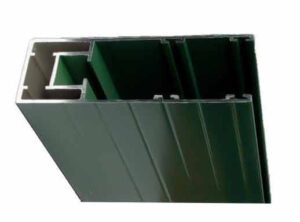

• The Vertiscreen Range offers a choice of 2 side channels (50mm or 100mm), or a Stainless Steel Wire Guide cable
• Vertiscreen 125 sizes from 0.65m – 5.4m wide, and drop from 0.65m – 3.3m
• 78mm Galvanised Roller Tube with welded stream for added strength
• 7:1 Gearbox is standard – motorisation is an optional extra

Specification

Vertiscreen 95

Width 0.65m ↔ 4.5m

Drop 0.65m ↔ 2.7m

Vertiscreen 95 Headbox

Vertiscreen 125

Width 0.65m ↔ 5.4m

Drop 0.65m ↔ 3.3m

Vertiscreen Teardrop Bottom Rail

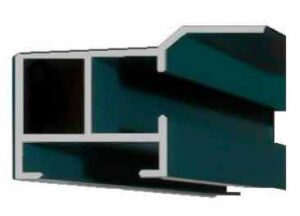

Vertiscreen Standard 50mm side channel

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian)

Maximum wind speed of 37kph

Colour Options

Standard Dulux Duralloy powder-coat colours are included in the price

Product Option

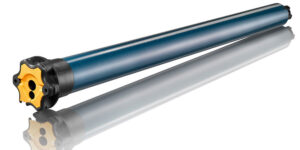

Somfy Motors

Altus 50 RTS 10/17

Wire Guide option

We also offer Stainless steel cables in lieu of the side channels. The stainless steel cables are secured top and bottom by Stainless steel fittings – one inside the head-box, the other secures the bottom end of the cable, by using either an L bracket which can be secured to a wall or verandah post, or by our Stainless Steel Deck Plate, securing the cable directly to the deck or flooring.

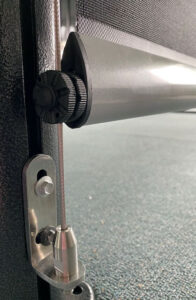

Vertiscreen Wire Guide Locking System

Vertiscreen Top Bush

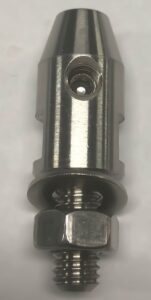

Vertiscreen Bottom Bush

Strap Runners

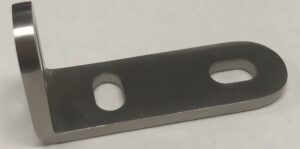

L Brackets

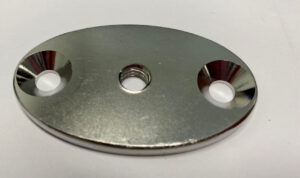

Deck Plates
